Home » Intrinsically Safe Products » Explosion-proof Illumination (Power) Distribution Boxes Warom BXM(D)8050 Series

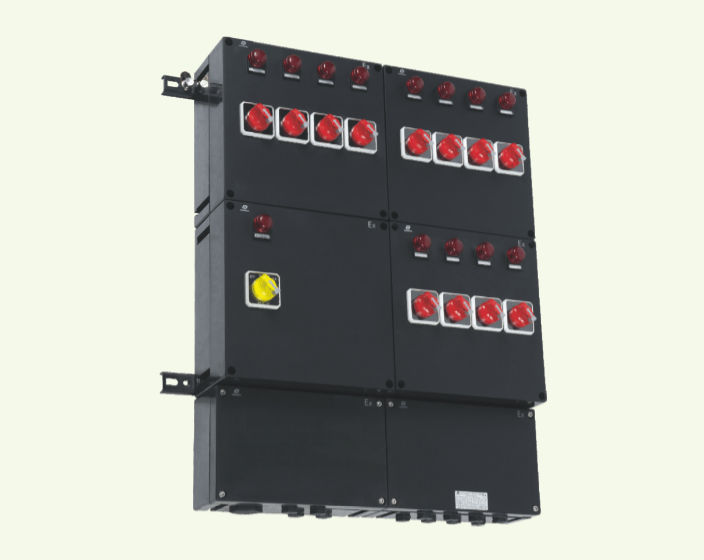

Explosion-proof Illumination (Power) Distribution Boxes Warom BXM(D)8050 Main Image
Explosion-proof Illumination (Power) Distribution Boxes Warom BXM(D)8050 Series - Image 2

Explosion-proof Illumination (Power) Distribution Boxes Warom BXM(D)8050 Series

SKU: BXM(D)8050
Q&AsWrite A Review
  • Explosion Protection to CENELEC, IEC, NEC.
  • Can be used in Zone 1,2,21,22 Class I Division 2 Groups A, B, C, D
  • Main switch and branch switch are operated with external rotary actuator.
  • Internal wiring to the terminal is finished.
  • The international brand of explosion-proof terminal blocks.
  • Enclosure: GRP (glass fiber-reinforced polyester resin).
Country of Origin 🇨🇳 China

$11.34 Import tariffs will be applied

This product is currently not available. Click the button below to speak to an expert.

GET HELP NOW
Similar Category:

Found It Cheaper?

We Match It!
Price Match Guarantee

Need Help?

Speak with a Hazardous Area expert now
832 699 6726 Chat with us

Description

Explosion-proof Illumination (Power) Distribution Boxes Warom BXM(D)8050 Series



SPECIFICATIONS:

Global (IECEx) IECEx CQM 14.0033X
Gas and Dust Ex d e IIC T5 or T4 Gb Ex tb IIIC T80℃ Db IP66
Europe (ATEX) EPT 15 ATEX 2265
Gas and Dust  II 2 G Ex d e IIC T5 or T4 Gb

 II 2 D Ex tb IIIC T80℃ Db IP66
Certificates IECEx; ATEX;CU-TR
Conformity to standards EN;IEC
Degree of protection IP66
Ambient temperature T5: -20℃~+40℃; T4/T80℃: -20℃~+55℃

DATA:

Material GRP (glass fiber-reinforced polyester resin)
Color Black
Dimensions As per design
Rated voltage Max. 690V AC 50/60Hz
Rated current Max.100A
Cable entries As per design
A cable gland (optional) DQM-I（Ex e）
Surface Mounting Standard



Explosion-proof Illumination (Power) Distribution Boxes Warom BXM(D)8050 Series Certification:







Explosion-proof Illumination (Power) Distribution Boxes Warom BXM(D)8050 Series Other Resources:
