Description
Explosion Proof Split Unit Air Conditioner – ATEX Zone 2
The Atexxo AIR-EX-FTXM-20-R410A is an explosion-proof split air conditioner designed for hazardous-area cooling and heating in Zone 2 (equivalent to Class I Division 2). Engineered for 24/7 use, this unit is ideal for chemical plants, offshore platforms, battery rooms, and hazardous goods storage areas requiring safe and reliable climate control.
Equipped with R410A refrigerant and built-in heat pump functionality, this unit delivers year-round operation with both cooling and heating modes. The explosion-proof modifications preserve the original features of the indoor and outdoor units, allowing easy installation, maintenance, and wireless control via included ATEX-rated remote. All components are designed to meet stringent safety standards for gas groups IIA, IIB, and IIC.
Availability, Certification & Specs at a Glance
To accelerate your evaluation process, especially for traffic arriving from targeted campaigns, here are the core specifications for this ATEX Zone 2 split unit air conditioner:
- 🔹 Certification: Fully certified for ATEX Zone 2 (II 3G; Ex ec h ic nC IIC T3 Gc), equivalent to Class I Division 2 for North American applications.
- 🔹 Model & Capacity: AIR-EX-FTXM-20-R410A (7,000 BTU / 2.0 kW Cooling Capacity).
- 🔹 Refrigerant: R410A, a proven and reliable refrigerant with zero Ozone Depletion Potential (ODP).
- 🔹 Availability: Standard lead time of 2-4 weeks. Worldwide shipping options are available.
- 🔹 Primary Use: Designed for 24/7 cooling and heating in hazardous areas like chemical plants, offshore platforms, and battery rooms.
For detailed technical data, please refer to the sections below or contact our hazardous area specialists to confirm suitability for your application.
What Has Changed with This Model?
This unit continues to utilize the proven and reliable R410A refrigerant, which has a zero Ozone Depletion Potential (ODP). While the industry is gradually shifting towards refrigerants with a lower Global Warming Potential (GWP) like R32, the Atexxo AIR-EX-FTXM series with R410A remains a fully certified, compliant, and widely deployed solution for hazardous areas. It provides a stable and familiar platform for facilities with established maintenance procedures for R410A systems. For new projects or sustainability mandates requiring the latest refrigerant technology, please contact our specialists to discuss our R32-based ATEX-certified alternatives.
Key Features:
- ✅ ATEX Zone 2 / C1D2 compliant (II 3G; Ex ec h ic nC IIC T3 Gc)
- ✅ R410A refrigerant with zero Ozone Depletion Potential (ODP)
- ✅ 24/7 operation with heat pump (cooling + heating)
- ✅ Includes ATEX-approved indoor/outdoor units + remote
- ✅ Easy to install plug-and-play design
- ✅ Blue Fin anti-corrosion coating standard
- ✅ Online controller via app (optional)
- ✅ For gas groups IIA, IIB, IIC (including Hydrogen)
- ✅ Available in multiple capacities (7,000–24,000 BTU)
Package Options:
- 🔹 AIR-EX-FTXM-20-R410A (7,000 BTU / 2.0 kW Cooling – 2.5 kW Heating)
Updated Comparison of Current Options
While this page details the 7,000 BTU model, Atexxo offers a range of capacities up to 24,000 BTU to suit different operational needs. Selecting the correct capacity is critical for both safety and efficiency in a hazardous environment. An improperly sized unit can lead to operational issues such as inefficient cycling or failure to maintain target temperatures. Our specialists can assist with a heat load calculation to ensure the selected unit meets your specific operational requirements. Request a quote to have a hazardous-area specialist assist with your sizing requirements.
Specifications:
| Feature | Details |
|---|---|
| Model | AIR-EX-FTXM-20-R410A |
| Cooling Capacity | 7,000 BTU / 2.0 kW |
| Heating Capacity | 2.5 kW |
| Refrigerant | R410A |
| Voltage | 200–240V AC |
| Frequency | 50/60 Hz |
| ATEX Classification | II 3G; Ex ec h ic nC IIC T3 Gc |
| Zone Compatibility | Zone 2 (C1D2 equivalent) |
| Indoor Unit Dimensions | 294 x 811 x 272 mm |
| Outdoor Unit Dimensions | 550 x 765 x 285 mm |
| Weight | 10 kg (indoor) / 32 kg (outdoor) |
| Corrosion Resistance | Blue Fin Coating |
| Control | Wireless ATEX Remote, App-ready |
Certifications & Compliance:
- 🔗 ATEX II 3G; Ex ec h ic nC IIC T3 Gc – Zone 2 Hazardous Locations
- 🔗 C1D2 Equivalent – For use in North American hazardous areas
- 🔗 R410A – Zero Ozone Depletion Potential (ODP)
- 🔗 Blue Fin Coating – Anti-corrosion for harsh environments
- 🔗 Download Datasheet
Applications:
- 🔹 Oil & Gas Facilities
- 🔹 Chemical Plants
- 🔹 Offshore Platforms
- 🔹 Analyzer Cabinets & Battery Rooms
- 🔹 Storage Areas with Explosive Gases
What’s in the Box?

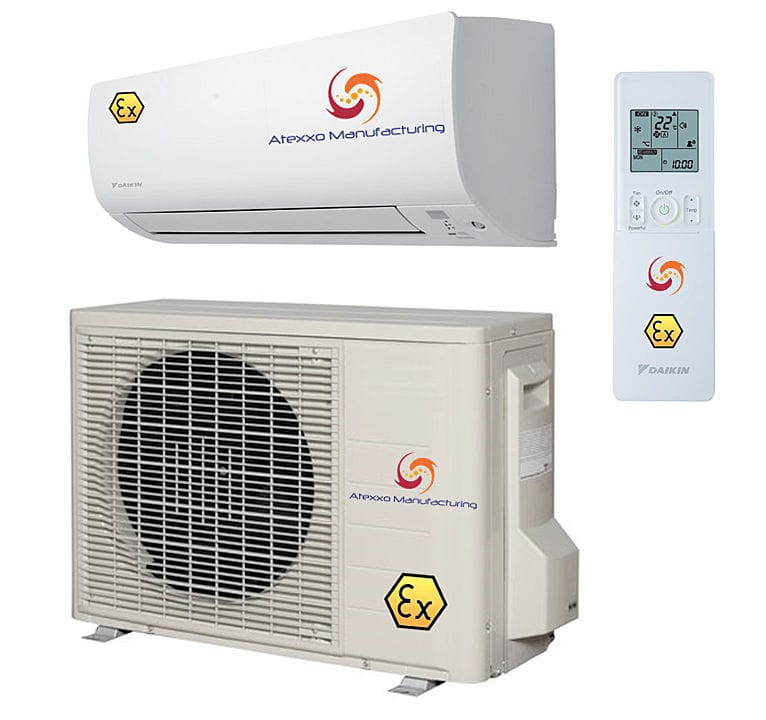

- 📦 1x Explosion-Proof Indoor Unit
- 📦 1x Explosion-Proof Outdoor Unit
- 📦 1x Wireless ATEX Remote Controller
- 📦 1x Installation Manual
Ordering & Shipping Details
Lead Time: 2-4 weeks
Shipping Terms: Worldwide / Freight & Export Options Available
Payment Options: Credit Card, PayPal, Net 30 Terms
Related Products:
- 🔹 Explore our full range of Hazardous Area HVAC solutions, including window units and portable coolers. CHECK OUT NOW!
- 🔹 For areas with flammable dusts, consider a unit certified for ATEX Zone 22. Talk to a specialist about your specific environmental hazards.
FAQs:
Can this unit be used in C1D2 applications in North America?
Yes, ATEX Zone 2 is the European equivalent of NEC Class I Division 2.
Is R410A refrigerant suitable for hazardous locations?
Yes, it is used in certified systems and has zero ozone depletion potential.
What is the operating voltage and frequency?
Electrical specifications vary by model and region. Please consult the product datasheet or contact our specialists for details relevant to your application.
Can I request a higher BTU unit or multi-split system?
Yes, Atexxo offers a full range of capacities and configurations – contact us for details.
What is the difference between the R410A refrigerant in this unit and newer R32 options?
This model uses R410A, a highly reliable and widely used refrigerant with zero ozone depletion potential (ODP). While newer regulations favor refrigerants with lower Global Warming Potential (GWP) like R32, our R410A units remain fully compliant, certified, and available. R32 systems may offer slightly higher efficiency but require different handling protocols. We offer both types to meet varying site requirements. Please contact our specialists to determine the best fit for your project.
How do I select the right BTU capacity for my facility?
Choosing the correct capacity (measured in BTUs) depends on several factors, including the room size, insulation, ambient temperature, and heat-generating equipment. Our hazardous area specialists can perform a heat load calculation to recommend the precise model (from 7,000 to 24,000 BTU) to ensure efficient and safe climate control. We recommend requesting a quote to start this process.
Do you ship these ATEX-certified units internationally?
Yes, we ship our explosion-proof equipment worldwide. Our logistics team is experienced in handling freight, customs, and export documentation to ensure your unit arrives safely at your international facility. Please specify your final destination when you request a quote so we can provide accurate shipping details and costs.
