Description

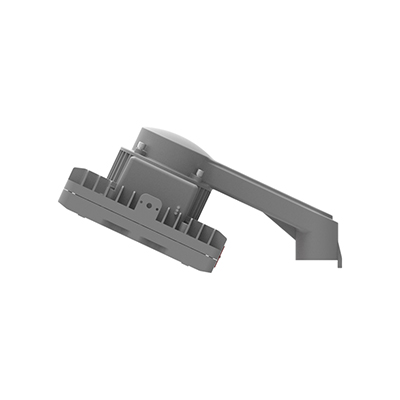

Grinsafe GHSM Pole-Mounted Explosion-Proof LED Light 60W with S25B 1 1/2” NPT 480VAC
The Grinsafe FLINT™ GHSM Pole-Mounted Explosion-Proof LED Light is a hazardous-location certified industrial lighting solution engineered for Class I Division 1, Class II Division 1, and Zone-rated explosive environments. Designed with an S25B pole-mount bracket and 1 1/2” NPT mounting connection, this 60W LED fixture delivers dependable illumination in hazardous industrial facilities including oil & gas plants, offshore drilling platforms, refineries, marine terminals, and chemical processing environments.
Constructed from corrosion-resistant copper-free aluminum and equipped with high-efficiency LED technology, the GHSM series provides up to 9,600 lumens while maintaining exceptional durability in harsh environments. Its shock-resistant, vibration-resistant, and marine-rated design combined with UL844 hazardous location certification ensures safe long-term operation in explosive gas and combustible dust atmospheres. The 347-480VAC voltage configuration makes it ideal for demanding industrial electrical systems.
Key Features:
✅ UL844 Certified for Class I Division 1 & 2 hazardous locations
✅ 60W high-efficiency explosion-proof LED fixture
✅ S25B pole-mounted bracket configuration
✅ 1 1/2” NPT industrial mounting connection
✅ 347-480VAC industrial voltage compatibility
✅ Up to 9,600 lumens output
✅ Corrosion-resistant copper-free aluminum housing
✅ IP66/IP67 waterproof and dust-tight enclosure
✅ Marine-rated for offshore and corrosive environments
✅ L70 lifespan rated over 150,000 operating hours
📦 Package Options:
🔹 Standard Pole-Mounted Version: GHSM 60W with S25B mount
🔹 347-480VAC Industrial Voltage Configuration
🔹 1 1/2” NPT Pole Mount Connection
🔹 Optional Accessories: Wire guard, visor, surge protection, safety cable
Grinsafe GHSM Pole-Mounted Light Technical Specifications:
| Feature | Details |
|---|---|
| Product Name | Grinsafe GHSM Pole-Mounted Explosion-Proof LED Light |
| Power | 60W |
| Mounting Type | S25B Pole Mount |
| Mount Connection | 1 1/2” NPT |
| Input Voltage | 347-480VAC |
| Frequency | 50/60Hz |
| Lumen Output | Up to 9,600 lm |
| Hazardous Rating | Class I Division 1 & 2 |
| Dust Rating | Class II Division 1 & 2 |
| Additional Classification | Class III |
| Zone Rating | Zone 1 / Zone 2 / Zone 21 / Zone 22 |
| Housing Material | Copper-Free Aluminum |
| Lens Material | Tempered Glass |
| IP Rating | IP66/IP67 |
| Operating Temperature | -40°C to +65°C |
| CRI | Ra >70 |
| Lifespan | L70 > 150,000 Hours |
| Certifications | UL844, UL1598, UL1598A, CSA C22.2 |
| Warranty | 5-Year Limited Warranty |
Certifications & Compliance:
🔗 UL844 – Certified for Class I Division 1 & 2 hazardous locations
🔗 UL1598 – Wet location certified
🔗 UL1598A – Marine and offshore approved
🔗 CSA C22.2 – Canadian hazardous location compliance
🔗 IP66/IP67 – Dust-tight and waterproof enclosure
🔗 Download Datasheet
Applications of Grinsafe GHSM Pole-Mounted Light:
🔹 Oil & Gas Facilities
🔹 Offshore Platforms
🔹 Chemical Processing Plants
🔹 Marine and Dock Facilities
🔹 Heavy Industrial Operations
What’s in the Box?
📦 1x Grinsafe GHSM 60W Explosion-Proof LED Light
📦 1x S25B Pole Mount Bracket
📦 1x Installation Hardware Kit
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: Typically 2–4 Weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
Related Products:
🔗 Grinsafe Wall-Mounted Explosion-Proof LED Light 60W W25° 3/4″ 480VAC
🔗 Grinsafe LED Explosion-Proof Ceiling Light 60W with CJB 3/4″ 480VAC
FAQs:
What hazardous area certifications does the GHSM pole-mounted light have?
The fixture is UL844 certified for Class I Division 1 & 2, Class II Division 1 & 2, and Class III hazardous environments.
What does the S25B mounting configuration mean?
S25B refers to the pole-mounted bracket configuration designed for industrial tube and stanchion mounting applications.
What mounting size does this model support?
This version uses a 1 1/2” NPT mounting connection for industrial pole installations.
Is the fixture suitable for offshore environments?
Yes. The fixture is UL1598A marine-rated and engineered for corrosive offshore and marine applications.
