Description

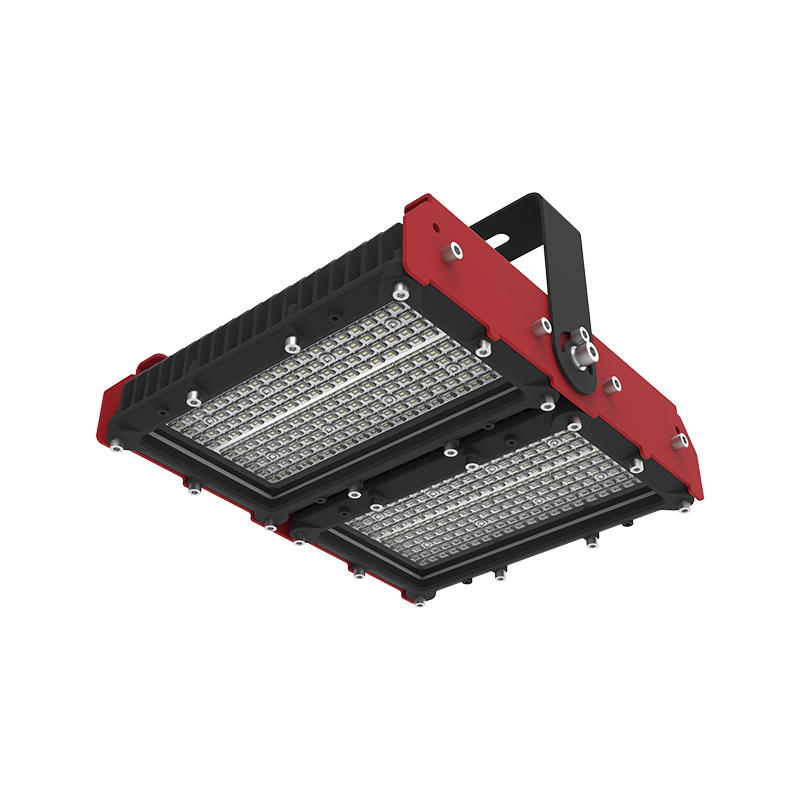

Grinsafe STORM GSM-30-U/N 200W Industrial Modular LED Flood Light
The Grinsafe STORM GSM-30-U/N is a high-performance 200W industrial modular LED flood light designed for demanding industrial environments where powerful and reliable illumination is required. Built for workshops, warehouses, manufacturing facilities, outdoor industrial areas, and wet locations, this fixture delivers 30,000 lumens of efficient lighting for harsh operating conditions.
Engineered for durability and field performance, the GSM-30-U/N features high luminous efficacy up to 150 lm/W, universal voltage compatibility, multiple beam angle options, and a corrosion-resistant aluminum housing. With IP66/67 ingress protection, IK07 impact resistance, tempered glass lens, and L70 lumen maintenance greater than 150,000 hours at 25°C, this industrial LED flood light is built for long service life in rugged applications.
Key Features:
✅ CE compliance
✅ UL 1598 Wet Locations and UL 8750 LED Safety compliance
✅ IP66/67 ingress protection and IK07 impact resistance
✅ Universal voltage: 100–277V / 347–480V AC, 50/60Hz
✅ 200W LED output with 30,000 lumens and up to 150 lm/W efficacy
✅ Multiple beam angle options: 30°, 60°, 90°, T1, T3, T4
✅ Tempered glass lens with impact-resistant construction
✅ L70 lumen maintenance greater than 150,000 hours at 25°C
✅ U-bracket or hanging mounting options
📦 Package Options:
🔹 GSM-30-U/N: 200W Industrial Modular LED Flood Light – 30,000 Lumens
Grinsafe STORM GSM-30-U/N Technical Specifications:
| Feature | Details |
|---|---|
| Product Name | Grinsafe STORM GSM-30-U/N Industrial Modular LED Flood Light |
| Model | GSM-30-U/N |
| Rated Power | 200W |
| Lumen Output | 30,000 lm |
| Luminous Efficacy | Up to 150 lm/W |
| Input Voltage | 100–277V AC / 347–480V AC |
| Frequency | 50/60Hz |
| Beam Angle Options | 30°, 60°, 90°, T1, T3, T4 |
| Color Temperature | 2700K, 3000K, 4000K, 5000K |
| CRI | Ra > 70 |
| Ambient Temperature | -40°C to +50°C |
| Operating Humidity | 10% to 90% RH |
| Lens Material | Tempered glass |
| Housing | Durable corrosion-resistant aluminum |
| Ingress Protection | IP66/67 |
| Impact Rating | IK07 |
| Mounting Options | U-bracket / Hanging |
| Lumen Maintenance | L70 > 150,000 hours at 25°C |
| Warranty | 5-year limited system warranty |
| Compliance | CE, UL 1598 Wet Locations, UL 8750 LED Safety |
Certifications & Compliance:
🔗 CE – General product compliance marking
🔗 UL 1598 Wet Locations – Suitable for wet location luminaire applications
🔗 UL 8750 LED Safety – LED equipment safety compliance
🔗 IK07 – Impact-resistant protection against mechanical shock
🔗 IP66/67 – Dust-tight and water-resistant ingress protection
🔗Download Datasheet
Applications of Grinsafe STORM GSM-30-U/N:
🔹 Industrial Workshops
🔹 Warehouses
🔹 Manufacturing Facilities
🔹 Outdoor Industrial Areas
🔹 Wet Location Applications
What’s in the Box?
📦 1x Grinsafe STORM GSM-30-U/N LED Flood Light
📦 1x Mounting Hardware Kit
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 2-3 weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
How many lumens does the GSM-30-U/N provide?
The GSM-30-U/N delivers 30,000 lumens of industrial illumination.
What is the wattage of this model?
This model is rated at 200W.
What voltage options are available?
The product supports 100–277V AC and 347–480V AC input voltage options.
Is this product hazardous-area certified?
The provided brochure lists CE, UL 1598 Wet Locations, UL 8750 LED Safety, IP66/67, and IK07 ratings. It does not list ATEX, IECEx, Class I Division, or Zone hazardous-area certification.
