Description

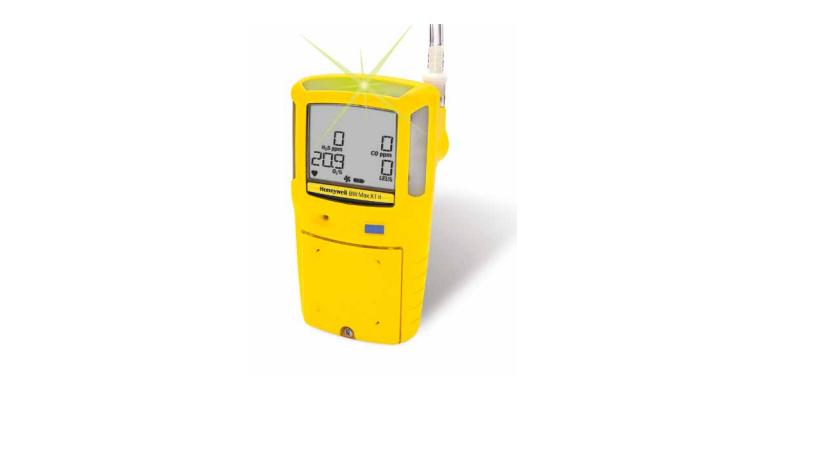

Honeywell BW™ Max XT II Multi-Gas Detector
The Honeywell BW™ Max XT II is the smart, simple, and economical way to maintain compliance and keep field workers safe in hazardous environments. Designed specifically for rough field conditions, this multi-gas detector monitors up to four atmospheric hazards simultaneously—including Hydrogen Sulfide (H₂S), Carbon Monoxide (CO), Oxygen (O₂), and combustible gases (LEL).
With its built-in IntelliFlash™ system providing continuous visual confirmation of operation and compliance, safety managers and teams can operate with total confidence in hazardous areas.
Engineered with SmartSample pump technology, the BW™ Max XT II features a robust motorized diaphragm pump that enables reliable remote sampling from up to 75 feet (23 meters), making it ideal for confined space entry in oil & gas, petrochemical, and industrial operations.
Simple one-button operation ensures ease of use even while wearing heavy work gloves, minimizing training requirements and field errors.
The unit features an IP66/67 rating, a built-in concussion-proof boot, and seamlessly integrates with Fleet Manager II and the MicroDock II automated test and calibration system.
Key Features:
✅ Class I, Div 1 (Gr. A, B, C, D) | ATEX Zone 0 (II 1 G Ga Ex ia IIC T4) | IECEx (Ga Ex ia IIC T4)
✅ One-button operation with Fleet Manager II software support and multi-language display options
✅ Rugged IP66/67 water-resistant housing with built-in concussion-proof boot
✅ Integrated SmartSample pump technology for remote sampling up to 75 ft. / 23 m
✅ Continuous LCD showing real-time multi-gas concentrations (H₂S, CO, O₂, LEL)
✅ IntelliFlash™ continuous visual compliance indicator and multi-angle visual alarm bars
✅ Rechargeable battery providing 13 hours at 32°F / 8 hours at -4°F (recharges in 6 hours)
✅ Standard datalogging, event logging, and full startup self-testing
✅ Compact design (11.5 oz / 328 g), comfortable for all-day wear
📦 Package Options:
🔹 Standard Gas Configuration: 4-Gas (H₂S, CO, O₂, LEL) with integrated sampling pump
Honeywell BW™ Max XT II Technical Specifications:
| Feature | Details |
|---|---|
| Product Model | Honeywell BW™ Max XT II |
| Target Gases | H2S (0-200 ppm), CO (0-1000 ppm) O2 (0-30% vol), Combustible/LEL (0-100% LEL) |
| Sampling Method | Integrated SmartSample diaphragm pump (draws up to 75 ft / 23 m) |
| Dimensions | 5.1×2.8×2.0 in. (13.1×7.0×5.2 cm) |
| Weight | 11.5 oz (328 g) |
| Ingress Protection | IP66/67 (Water and dust resistant) |
| Battery Life | 13 hours at 32∘F (0∘C); 8 hours at −4∘F (−20∘C) 6-hour recharge time |
| Operating Temp | −4 to 122∘F (−20 to 50∘C) |
| Humidity Range | 10% to 100% RH (non-condensing) |
| Alarms | Visual, vibrating, audible (95 dB); Low, High TWA, STEL, OL, Low Battery, Pump |
| Visual Compliance | IntelliFlash™ continuous visual indicator |
| Certifications | Class I, Div. 1, Gr. A, B, C, D ATEX II 1 G Ga Ex ia IIC T4 IECEx Ga Ex ia IIC T4 |
| Warranty | Full 2-year warranty including all sensors |
Certifications & Compliance:
🔗 Class I, Div. 1, Gr. A, B, C, D – Hazardous Location Safety Standard (US/Canada)
🔗 ATEX / IECEx (Ga Ex ia IIC T4) – Intrinsically Safe Certification for Explosive Gas Atmospheres
🔗 EMC Directive 2004/108/EC – Electromagnetic Compatibility Compliance
🔗 Ingress Protection (IP66/67) – Complete dust-tight protection and resistance to water jets/immersion
🔗 Download Datasheet
Applications Honeywell BW™ Max XT II:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing
What’s in the Box?
📦 1x Honeywell BW™ Max XT II Detector with integrated pump
📦 1x Integrated Rechargeable Battery
📦 1x Charging Adapter
📦 1x Calibration Hose/Tubing
📦 1x Stainless Steel Alligator Clip
📦 1x Built-In Concussion-Proof Boot
📦 1x Quick Reference Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 2 – 3 Weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
How far can the integrated pump draw gas samples?
The SmartSample motorized pump can reliably sample air concentrations from up to 75 feet (23 meters).
What is the typical battery operating time?
The rechargeable battery delivers up to 13 hours of runtime at 32°F (0°C) and 8 hours in extreme cold environments down to -4°F (-20°C). Recharging takes approximately 6 hours.
What gases does the Honeywell BW™ Max XT II detect?
It simultaneously monitors Hydrogen Sulfide (H₂S), Carbon Monoxide (CO), Oxygen (O₂), and Combustible Gases (% LEL).
How do safety personnel know if the device is compliant in the field?
The unit features IntelliFlash™, a continuous visual indicator that signals the detector is active, working properly, and in compliance.
