Description

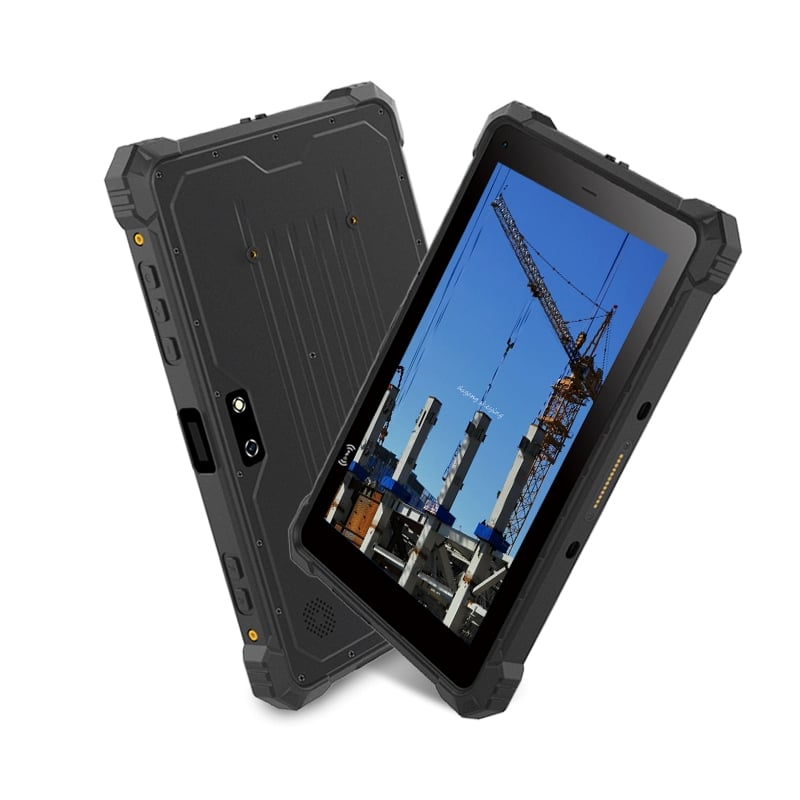

CENAVA A10ST 4G Rugged Tablet
The CENAVA A10ST 4G is a high-performance, ultra-rugged tablet designed to streamline operations in extreme and hazardous industrial environments. Built to satisfy strict explosion-proof certifications (including EX Class II Petrochemical, MA/KA Coal & Mining, as well as ATEX and IECEx standards), this tablet guarantees total safe operational capability across oil fields, chemical facilities, and underground mines. Its heavy-duty construction protects essential operations against water, dust, drops, and explosive gases, making it an indispensable tool for frontline technicians and engineers.
Powered by an 8-core MediaTek processor running Android 13, the A10ST provides seamless multitasking, rapid data collection, and robust system security. The 10.1-inch IPS display delivers crisp 1920×1200 resolution at 700 cd/m² (upgrades available up to 1000 cd/m²), ensuring high visibility under direct sunlight, while fully supporting wet-hand and glove touch functionality in harsh field conditions. Equipped with a high-capacity 10,000mAh battery (expandable to 20,000mAh), dual cameras (16MP rear / 8MP front), and customizable data capture options like 1D/2D barcode scanners and RTK high-precision positioning, it ensures maximum field productivity throughout long shifts.
Key Features:
✅ Certifications: EX Class II Petrochemical, Coal Mining, ATEX & IECEx explosion-proof ratings
✅ OS & Performance: Android 13 powered by MTK8781 Octa-Core processor (up to 2.2GHz)
✅ Ruggedness: IP68, MIL-STD-810H drop testing (1.22m drop), -20°C to +60°C operating temp
✅ Connectivity: 4G LTE, Dual-Band Wi-Fi 5 (2.4G+5.8G), Bluetooth 5.2 (BLE), NFC, Multi-GNSS (GPS, BeiDou, Galileo, GLONASS)
✅ Camera System: 16MP Auto-Focus rear camera with flash, 8MP Fixed-Focus front camera
✅ Security & Customization: Optional fingerprint modules (certified options available) and custom physical function keys
✅ Battery Power: 10,000mAh 3.8V high-voltage lithium battery (10 hours 1080p video playback)
✅ Data Collection & Modules: Optional 1D/2D barcode scanner, RFID (UHF/HF/LF), ID card reader, and RTK high-precision positioning module
✅ Physical Expansion: Dedicated RS232 serial port, RJ45 Ethernet, Type-A USB 2.0, Type-C OTG, POGO pin interface, and Micro SD slot (up to 256GB)
CENAVA A10ST 4G Technical Specifications:
| Feature | Details |
|---|---|
| Model Name | CENAVA A10ST 4G |
| Operating System | Android 13 |
| Processor (CPU) | MTK8781 Octa-Core (2.0 GHz / 2.2 GHz) |
| Memory / Storage | 12GB RAM + 256GB ROM (MicroSD expandable up to 256GB) |
| Display | 10.1-inch IPS (1920x1200 FHD, 700 cd/m² brightness |
| Touch Screen | 10-point capacitive G+G Corning Gorilla Glass 3 (7H hardness, supports gloves and wet-hand touch) |
| Explosion-Proof Ratings | EX Class II Petrochemical, MA/KA Coal & Mining, ATEX & IECEx compliance |
| Ruggedness Ratings | IP68 (Dustproof/Waterproof), MIL-STD-810H (1.22m drop resistant) |
| Battery & Runtime | 10,000mAh / 3.8V Lithium Battery (10 hours runtime at 50% load) |
| Rear Camera | 16MP Auto Focus with True Flash |
| Front Camera | 8MP Fixed Focus |
| Cellular Connectivity | 4G LTE (FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66/B71 TDD: B38/B39/B40/B41), 3G WCDMA, 2G GSM |
| Wireless & Bluetooth | Dual-Band Wi-Fi 802.11 a/b/g/n/ac (2.4G + 5.8G) Bluetooth 5.2 (BLE Class 1) |
| Location / GNSS | GPS, BeiDou, Galileo, GLONASS (Optional RTK High-Precision Module) |
| NFC | 13.56 MHz (Supports ISO 14443A/B & 15693 protocols) |
| I/O Ports | 1x Type-C USB 2.0 (OTG), 1x Type-A USB 2.0, 1x RS232 Serial Port 1x RJ45, 1x 3.5mm Earphone Jack, 1x Micro SIM, 1x Micro SD 12-Pin POGO Pin, DC Jack |
| Sensors | Gravity sensor, Compass, Gyroscope, Light sensor, Distance sensor |
| Optional Modules | 1D/2D Barcode Scanner, RTK Positioning UHF/HF/LF RFID, ID Card Reader, Fingerprint Reader |
| Operating Temperature | -20°C to +60°C (Customizable -30°C to +60°C) |
| Dimensions & Weight | Bare unit: 283.9 x 189.0 x 24.1 mm / Weight: 1130g |
Certifications & Compliance:
🔗 EX Class II Petrochemical – Petrochemical explosion-proof certification for hazardous gas areas
🔗 MA / KA Coal Mining Safety – Certified safety standards for underground mining environments
🔗 IECEx- Certificate– International explosion-proof standard compliance for global hazardous areas
🔗 MIL-STD-810H – US military testing standards against drops (1.22m), shocks, and vibrations
🔗 IP68 Protection – Complete protection against dust penetration and long-term water immersion
🔗 Download Datasheet
Applications of CENAVA A10ST 4G:
🔹 Oil & Gas Field Extraction & Exploration
🔹 Chemical Processing Plant
🔹 Underground Coal & Metal Mining
🔹 Smart Manufacturing & Heavy Industry
🔹 Emergency Rescue & Medical Cold Chain
What’s in the Box?
📦 1x CENAVA A10ST 4G Tablet
📦 1x Integrated High-Capacity Battery (10,000mAh)
📦 1x Power Adapter (5V/3A DC)
📦 1x USB/Type-C Cable
📦 1x Integrated Rugged Protective Housing
📦 1x Quick Start Guide & Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 2 Weeks
📍 Shipping Terms: Worldwide Shipping / Expedited Air Cargo Options Available
💳 Payment Options: Credit Card, PayPal, Net 30 Terms (upon approval)
FAQs:
Is the touchscreen operational with work gloves and wet hands?
Yes, the A10ST features a 10-point touch screen with Corning Gorilla Glass 3 that supports operation with medical rubber gloves and includes wet-hand touch functionality.
Can I integrate custom hardware modules like barcode readers or RTK GPS?
Yes, the tablet offers optional custom factory modules, including 1D/2D barcode scanners, RTK high-precision positioning modules (1cm accuracy), UHF/HF RFID, and fingerprint scanners.
What is the battery life on a single charge?
The standard 10,000mAh battery provides up to 10 hours of continuous 1080p video playback at 50% brightness.
What hazardous environment certifications does this tablet possess?
The A10ST is certified with EX Class II Petrochemical, KA/MA Mining explosion-proof safety standards, as well as ATEX and IECEx compliance for international market hazardous areas.
