Description

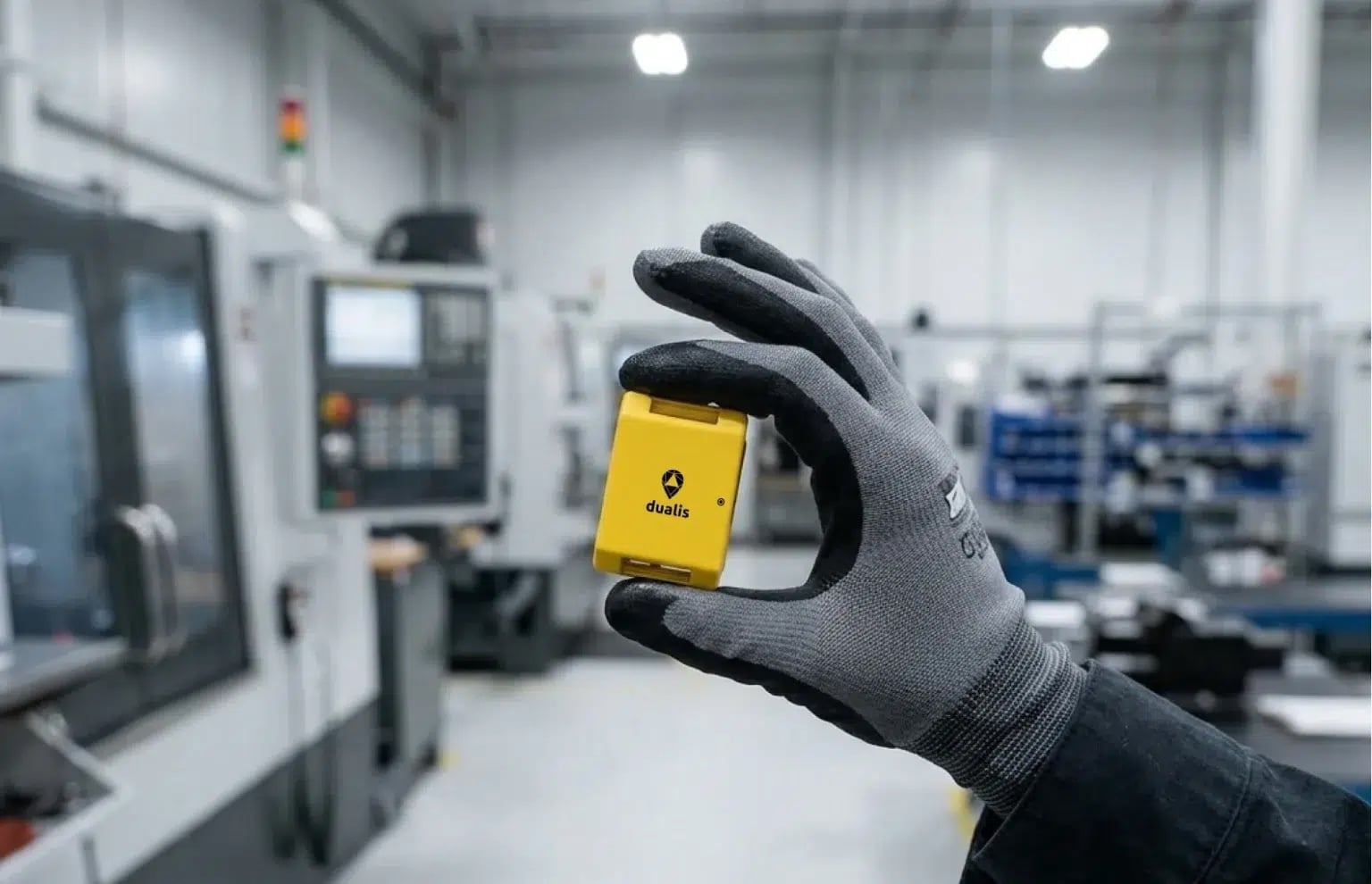

Zone 1 Litum ATEX Dualis Tag
The zone 1 Litum ATEX Dualis Tag is a highly certified tracking device developed specifically for safe, real-time monitoring of assets, equipment, and personnel within safety-critical industrial environments where explosive gases or dust are present. Engineered to withstand the harshest industrial conditions, this robust device ensures regulatory compliance while drastically boosting asset management efficiency and facility safety.
In the field, the ATEX Dualis Tag delivers reliable, highly precise performance by utilizing an advanced hybrid configuration of Bluetooth® Low Energy (BLE) and Ultra-Wideband (UWB) technologies, allowing for critical tracking with sub-meter accuracy. Optimized for long-term operations with reduced maintenance overhead, it features an integrated motion sensor that activates power-saving modes, while magnetic sensors and tamper alerts enhance functionality and hardware security during day-to-day operations.
Key Features:
✅ ATEX Certified for Zone 1 and Zone 2 hazardous locations
✅ Over-the-air (OTA) firmware updates support seamless optimization without service interruption
✅ IP67-rated enclosure: fully dust-tight, waterproof, and highly resistant to harsh cleaning and sterilization
✅ Hybrid BLE and UWB location technology enabling sub-meter accuracy for tracking needs
✅ Integrated LED indicators for clear status and activity signaling
✅ Tamper-resistant construction with dedicated tamper detection and an optional internal buzzer
✅ Long-lasting, replaceable Li-SOCl2 1200 mAh battery offering up to 5 years of operation
✅ Built-in motion sensor for automatic inactivity detection and power-saving modes
✅ Compact, lightweight (28g) design featuring integrated slots for secure cradling and strap mounting
Litum ATEX Dualis Tag Technical Specifications:
| Product Name | ATEX Dualis Tag |
|---|---|
| SKU | 6370000001 EX |
| Tracking Technologies | Hybrid BLE (Bluetooth® Low Energy) UWB (Ultra-Wideband) |
| Location Accuracy | Sub-meter precision |
| Dimensions (Without Cradle) | 37.5 mm x 55.5 mm x 19.3 mm |
| Dimensions (With Cradle) | 44.1 mm x 55.5 mm x 24.3 mm |
| Weight | 28g |
| Housing Material | Industrial-grade housing |
| Color | Yellow |
| Ingress Protection | IP67 (Dust-tight, waterproof, sterilization resistant) |
| Operating Temperature | -30°C to +70°C (-22°F to +158°F) |
| Storage Temperature | -30°C to +70°C (-22°F to +158°F) |
| Humidity Tolerance | 0% to 95% non-condensing |
| Battery Type | Li-SOCl2 1200 mAh |
| Battery Lifespan | Up to 5 years (Replaceable) |
| Hardware Sensors | Motion Sensor, Magnetic Sensor, Tamper Detection |
| Indicators / Audio | Status & Activity LEDs, Optional Buzzer |
| Firmware Updates | OTA (Over-the-Air) |
| ATEX Gas Rating | II 2G Ex ib IIC T4 Gb |
| ATEX Dust Rating | II 2D Ex ib IIIB T135°C Db |
| Regulatory Compliance | CE, RoHS |
Certifications & Compliance:
🔗 ATEX Gas Certification – Ex II 2G Ex ib IIC T4 Gb
🔗 ATEX Dust Certification – Ex II 2D Ex ib IIIB T135°C Db
🔗 CE & RoHS Compliant – European conformity and restriction of hazardous substances
🔗 Litum-ATEX-Family-One-Pagerr
🔗Download Datasheet
Applications of Litum ATEX Dualis Tag:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing
What’s in the Box?
📦 1x Litum ATEX Dualis Tag
📦 1x Li-SOCl2 1200 mAh Battery (Pre-installed)
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 2 – 3 Weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
Related Products:
🔗Litum ATEX Zone 1 Endurance Gateway POE
FAQs:
What technologies does the ATEX Dualis Tag use for tracking?
The tag relies on a high-precision hybrid configuration of Bluetooth® Low Energy (BLE) and Ultra-Wideband (UWB) technologies to deliver sub-meter tracking accuracy.
Is the battery in the Dualis Tag replaceable?
Yes, the tag features a replaceable industrial-grade Li-SOCl2 battery that can provide up to 5 years of operational lifespan to minimize ongoing maintenance.
What environmental conditions can the tag handle?
With its IP67-rated dust-tight and waterproof housing, the tag safely operates in harsh industrial environments across temperatures ranging from -30°C to +70°C.
How do the physical dimensions change with the cradle attached?
Standalone, the tag measures 37.5 x 55.5 x 19.3 mm. When attached to the Dualis cradle, the dimensions extend to 44.1 x 55.5 x 24.3 mm.
