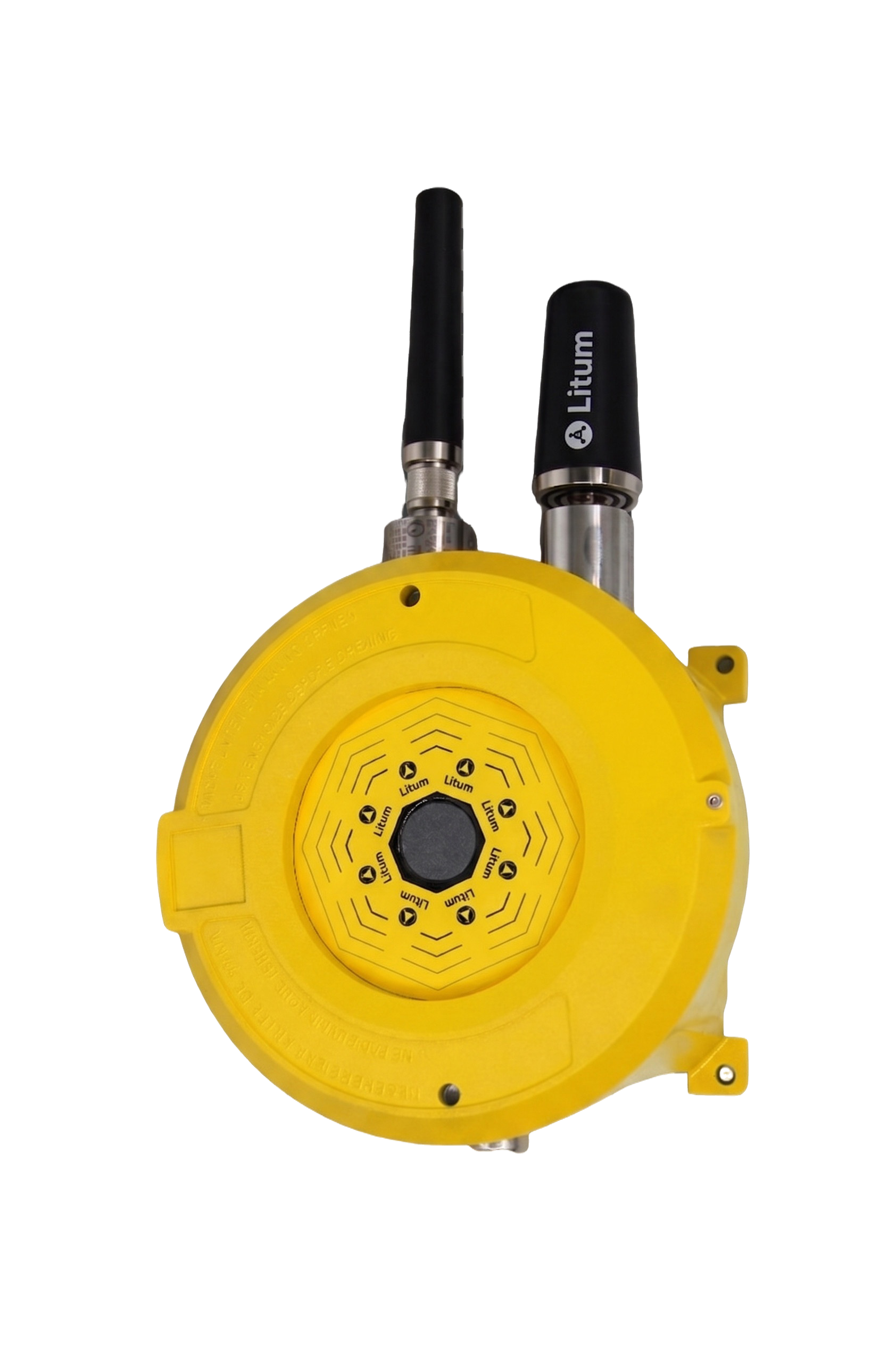

Litum ATEX Zone 1 Endurance Gateway POE
The Litum ATEX Zone 1 Endurance Gateway POE is a certified industrial infrastructure component designed to bring safe, real-time tracking and data transmission into explosive atmospheres. As a critical bridge between RTLS devices and your central platform, this gateway delivers high-precision operational visibility across safety-critical and compliance-driven industrial zones.
Engineered for seamless field deployment, the device utilizes Power-over-Ethernet (PoE) to simplify wiring and lower installation costs. Housed in a heavy-duty Aluminum Ex d enclosure, it operates reliably in extreme temperatures ranging from -10°C to +60°C, ensuring robust UWB and Bluetooth connectivity (BLE 4.x and 5.x) for tracking assets and personnel in harsh conditions.
Key Features:
✅ ATEX Zone 1 certified for safe operation in explosive gas and dust environments
✅ Supports BLE 4.x/5.x and UWB channels for comprehensive RTLS tracking
✅ Heavy-duty Aluminum Ex d enclosure protects internal electronics from hazardous atmospheres
✅ Power-over-Ethernet (PoE) powered for simplified, single-cable installations

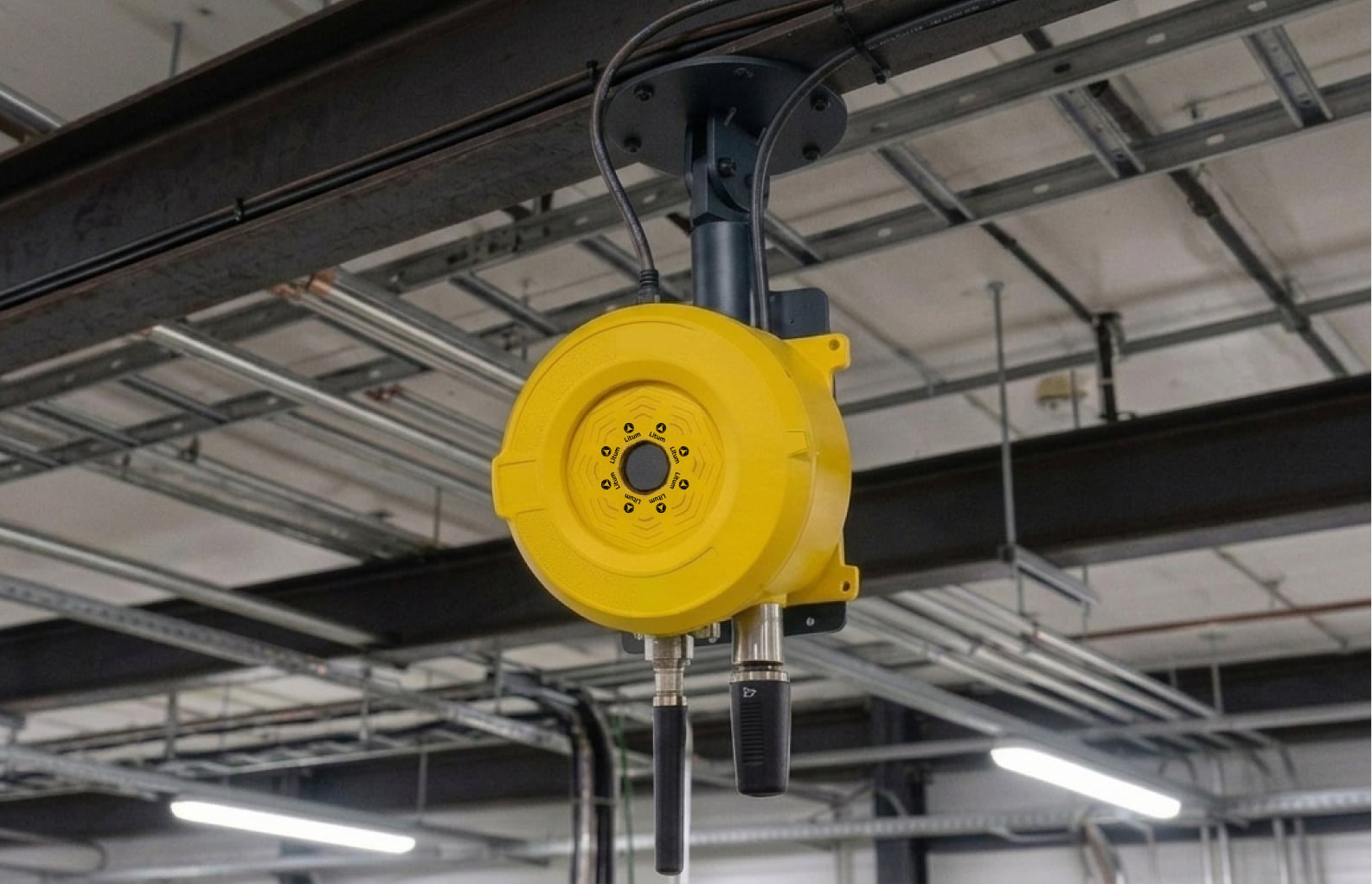

✅ Flexible deployment with support for wall, ceiling, or walkway mounting
✅ Industrial-grade design built for high humidity (0 to 95% non-condensing) and extreme environments
✅ Remote firmware update support ensures hassle-free security and performance patches
✅ Ultra-efficient power draw with a 2W average and 5W maximum consumption
✅ Visible red LED indicator for clear on-site status monitoring
📦 Package Options:
🔹 SKU 2200000001EX: Litum ATEX Zone 1 Endurance Gateway POE (Standard Configuration)
Litum ATEX Zone 1 Endurance Gateway POE Technical Specifications:
| Feature | Details |
|---|---|
| Product Name | Litum Atex Zone1 Endurance Gateway POE |
| SKU Number | 2200000001EX |
| ATEX Certification | II 2GD Ex db IIC T4/T6, Ex tb IIIC T85/T100 °C |
| Other Certifications | CE, RoHS |
| Enclosure Material | Aluminum Ex d |
| Environmental Protection | IP65 |

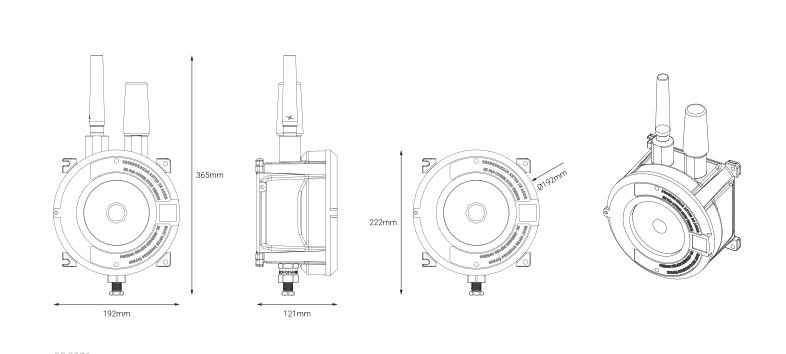

| Dimensions (With Antennas) | 192 x 365 x 121 mm (7.56 x 14.37 x 4.77 in) |
| Dimensions (Without Antennas) | 192 x 222 x 121 mm (7.56 x 8.74 x 4.77 in) |
| Weight | 4.5 kg |
| Supply Options | Power over Ethernet (PoE) |
| Power Consumption | Average 2 W / Maximum 5 W |
| Operating Temperature | -10°C to +60°C (14°F to 140°F) |
| Relative Humidity | 0 to 95% non-condensing |
| Frequencies Supported | 2.4GHz ISM & UWB channels |
| Bluetooth Protocol | BLE 4.x and 5.x |
| Status Indicators | LED (Red Light Indicator) |
| Remote Firmware Updates | Supported (Yes) |
Certifications & Compliance:
🔗 Certificate Certified for explosive atmospheres (II 2GD Ex db IIC T4/T6, Ex tb IIIC T85/T100 °C)
🔗 CE Compliance – Conforms with all applicable European health, safety, and environmental protection standards
🔗 RoHS Directive – Compliant with the Restriction of Hazardous Substances
🔗 Litum-ATEX-Family-One-Pager
🔗 Download Datasheet
Applications of Litum ATEX Zone 1 Endurance Gateway POE:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing
What’s in the Box?
📦 1x Litum ATEX Zone 1 Endurance Gateway POE
📦 Integrated External Antennas
📦 Mounting Bracket Kit
📦 Installation & Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 2 – 3 Weeks.
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
Related Products:
🔗 [Litum ATEX Personnel Tag – Link]
🔗 [Litum ATEX Asset Tag – Link]
🔗 Zone 1 ATEX Litum Dualis Tag
FAQs:
What RTLS frequencies does this gateway support?
The gateway supports both 2.4GHz ISM (Bluetooth BLE 4.x and 5.x) and Ultra-Wideband (UWB) channels for real-time tracking.
How is the device powered?
It is powered via standard Power-over-Ethernet (PoE), which handles both power and stable Ethernet connectivity over a single cable.
Can the firmware be updated after it is installed in a hazardous area?
Yes, the gateway fully supports remote firmware updates, allowing you to maintain compliance and optimize features without needing physical maintenance in hot zones.
What are its physical dimensions and weight?
With the antennas attached, the dimensions are 192 x 365 x 121 mm (7.56 x 14.37 x 4.77 in), and it has a sturdy industrial weight of 4.5 kg.
